DigiElch8 Help

The Property Page: Chemical Reactions works as previously described for the CV-Simulation Document.

The Property Page: Surface Reactions works as previously described for the CV-Simulation Document.

.

aj A value of Cdl (F) written in magenta indicates that a time/potential dependent double layer capacity has been entered by the user. The polynomial coefficients describing the dependence of the double layer capacity as function of the electrode potential can be edited by clicking with the right mouse button while the cursor is localized over the input field associated with Cdl (F).

The following parameter groups


•Geometry

•Pre-Equilibrium

•Simulation Name


as  well as the Simulation Parameters headlined


•Experimental Conditions

•Model Parameters

•2D-Simulation

•FEM-Simulation

work exactly in the same way as already described for cyclic voltammetry.  However, the options for


•Diffusion

are currently restricted to one-dimensional semi-infinite diffusion.

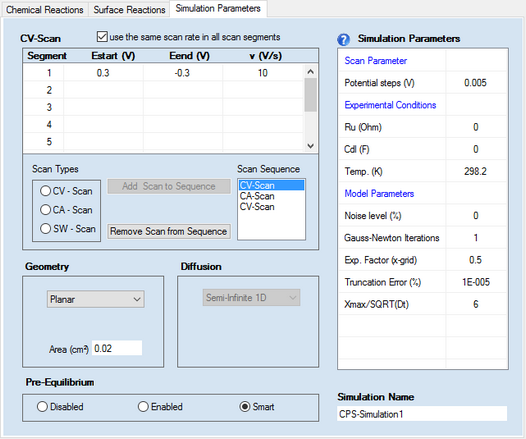

The meaning and functionality of the Scan Parameters depends on the type of scan that has been selected in Scan Sequences. In the above example three scans (two CV scans and one CA scan) have been added to the list of Scan Sequences.  When activating a CV-scan (left picture) the ListControl  for defining the CV-Scan and the Scan Parameter listed in Simulation Parameters work in the same way as described for a CV-Simulation. When activating a CA-scan (right picture) the ListControl  for defining the CA-Scan and the Scan Parameters listed in Simulation Parameters work in the same way as described for a CA-Simulation. Analogously, the ListControl  and the Scan Parameters referring to an SW-Simulation would appear when activating a SW-scan. In the above example, the latter could be added by selecting SW-Scan in Scan Types and clicking on the button Add Scan to Sequence. (This button becomes enabled only if one of the Scan Types has been selected.)
