Ribbon Bar Commands

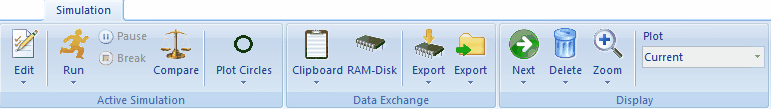

RibbonBarSimulation

During the download of the video clip the scrolling of this page may be disabled!


<%EXTOGGLE%>Command Group: Active Simulation



Command: Edit
Edit the simulation parameters associated with the active simulation.

Command: Duplicate
Combination of Copy & Paste & Edit.





Command: Run
Runs a simulation using the default fixed-grid simulator.

Command: Adaptive Grid Simulator
Runs a simulation using the adaptive-grid simulator.




Command: Pause
Pauses or continues the currently running active simulation.

Command: Break
Breaks  the currently running active simulation.


Command: Compare
Copies the active simulation and the currently selected active experiment to the Tabbed Window: Compare Curves to show a direct comparison of the associated current curves.



Command: Circles
The active current curve is plotted in the form of open circles.

Command: Filled Circles
The active current curve is plotted in the form of filled circles.

Command: Min/Max Info
Shows the E-I-couple referring to the minimum/maximum found in a rectangle of the screen display drawn by mouse.

Command: Next Scan Segment
Activates the next scan segment If the active simulation consists of more than one.



<%EXTOGGLE%>Command Group: Data Exchange



Clipboard Command: Copy
Copies the active simulation and puts the copy on the clipboard.

Clipboard Command: Cut
Cuts the active simulation and puts it on the clipboard.

Clipboard Command: Paste
Pastes clipboard content into the Tabbed Window: Simulations.



Command: RAM-Disk               RAM_Disk
Opens a dialog box showing the actual content of the RAM-Disk. The RAM-Disk stores data in use-file format and can be used, for instance, to export  CVs simulated in the Tabbed Window: Simulations to the Tabbed Window: Experiments window. In this way experimental curves can be mimicked by simulated ones, for instance, in order to investigate how  systematic errors such as noise are passed to individual parameter values when using these files in a fitting project.



RAM-Disk Command: ExportExportRAM
Exports the active simulation to the RAM-Disk

RAM-Disk Command: Add all Simulation to RAM-Disk
Exports all simulations shown in the Tabbed Window: Simulations in use-format and stores the use-files in the RAM-Disk.



File Command: Export
Exports the active simulation as use- or txt-file.

File Command: Export all Simulations
Exports all simulations  shown in the Tabbed Window: Simulations as use- or txt-files.



<%EXTOGGLE%>Command Group: Display

Command: Next
The next current curve is activated.

Command: Previous
The previous current curve is activated.





Command: Delete Active Simulation
Deletes the active simulation.

Command: Delete All Simulation
Deletes all simulations shown in the Tabbed Window: Simulations.





Command: Zoom
Zooms the screen display by pressing down the left mouse button and draw a rectangle around the region which is to be zoomed. The zoom command can be repeatedly applied.

Command: Unzoom
Undo the zoom command.

Command: Refresh Screen
Removes Min/Max-Info and redraws the screen display.

Option: Plot Current
No other plot option is available for cyclic voltammetry.

<%EXTOGGLE%>Summary: Play Movie

Topics

Defining and modifying a mechanism

Modifying simulation parameters

Running a simulation

Clipboard commands: Copy, Paste

Display commands: Zoom, Unzoom, Refresh Screen, Next, Previous

Commands: Edit, Duplicate, Run, Circles, Filled Circles, Min/Max Info, Next Scan Segment
